Graflex Bulb Assembly

This replacement camera internal bulb assembly features the details and functionality of its vintage counterpart.  Fit and finish matches the antique original.  Transform your GRAFLEX® into a working camera flash.

V2:  This version has been revised to utilize thermoset polymer parts instead of using modern thermoplastic.  The original part was made from Bakelite, one of the first thermoset plastics.  Thus, TGS has updated the assembly with more accurate features and with its material more closely matching an original.  Please allow 5-business days as these are cast using a 100 year old process.

V1:  This version uses thermoplastic pieces using a modern material and injection molding process.  It's based on a previous gen design that may need some fitting and adjustment to get it to be vintage accurate in sizing and features.

Includes:

• 3pc internal bulb assembly
• Bulb contact, springs and related internal connection parts
• 2x plated square under-button pins
• Pilot light bulb
• D-Cell battery spring


GRAFLEX® flash, flash hood, sync Contacts & pins not included.  Please refer to the attached drawing for part and assembly details.

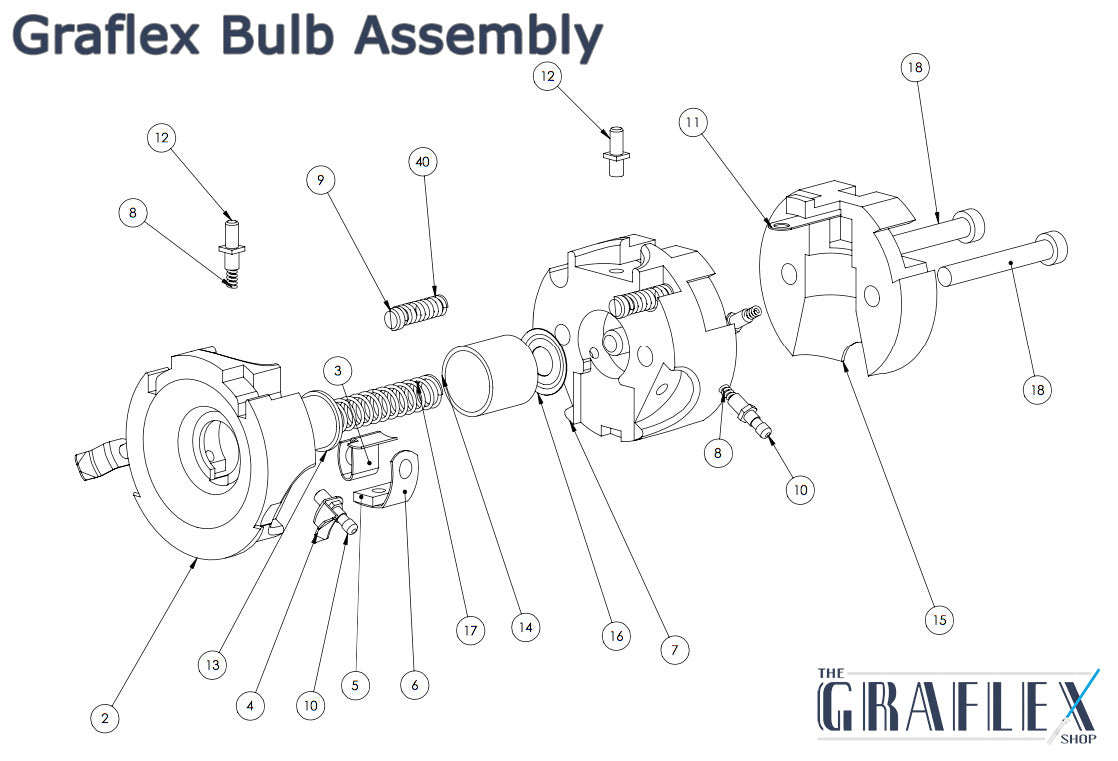

Parts Diagram Legend:

•  2 - Top Plastic
•  3 - Internal Contact Inner
•  4 - Long Sync Contact (not included)
•  5 - Mounting Screw Washer
•  6 - Internal Contact Facing
•  7 - Middle Plastic
•  8 - Pin Spring
•  9 - Flash Hood Contact
• 10 - Brass Hex Pin (not included)
• 11 - Pilot Bulb Contact
• 12 - Plated Square Pin
• 13 - Bulb Plunger
• 14 - Plunger Ring
• 15 - Bottom Plastic
• 16 - Plunger Washer
• 17 - Plunger Spring
• 18 - Assembly Screw
• 40 - Flash Hood Spring
• 41 - Pilot Bulb (not pictured)
• 42 - Battery Spring (not pictured)
